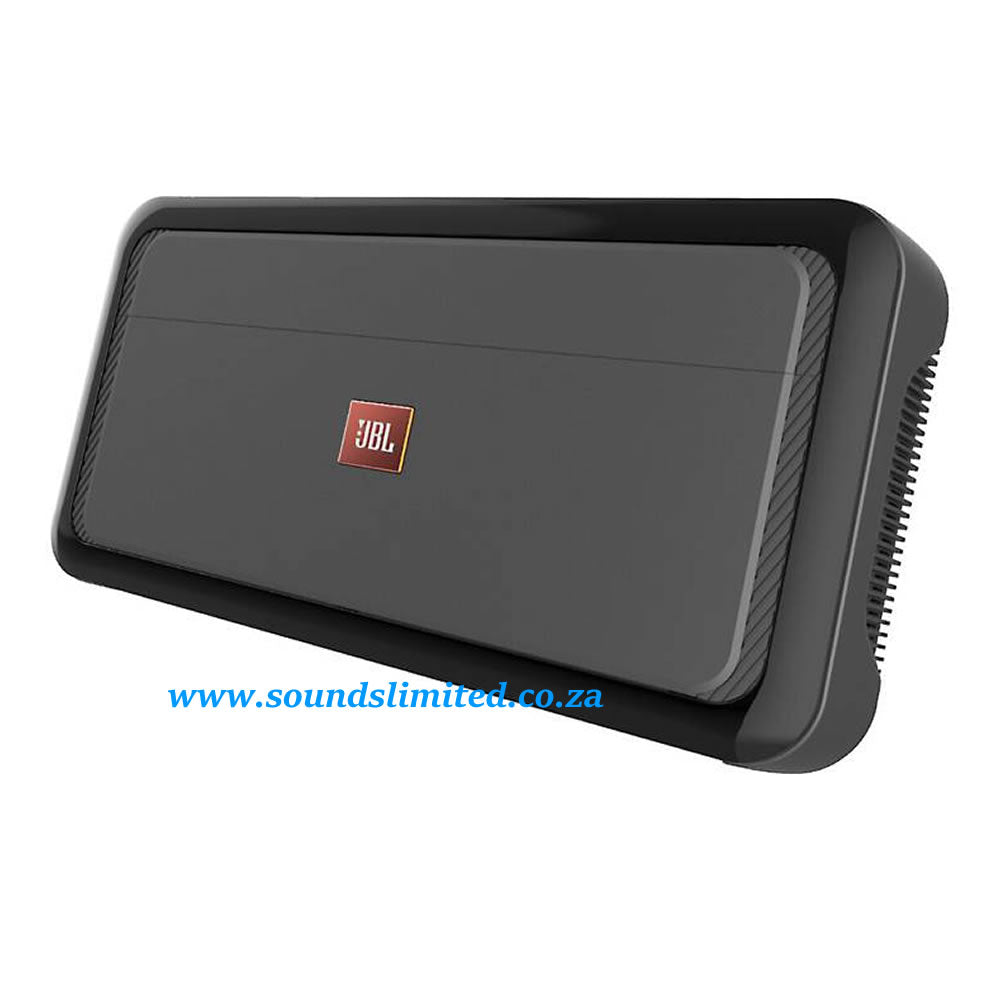

JBL Club A5055 Club Series 5-channel car amplifier

JBL Club A5055 Club Series 5-channel car amplifier

SKU:Club A5055

Regular price R 5,450.00
Regular price Sale price R 5,450.00
Sale Sold out
Taxes included.
Quantity

JBL Club A5055

Club Series 5-channel car amplifier 50 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms

Solid performance

Not into the hassle of wiring up multiple amplifiers? JBL's Club A5055 five-channel amplifier deliver 50 watts RMS to each of your front and rear speakers, plus up to 500 watts RMS to your sub, all from a chassis that's the size of a book. Or, you could use the amp in 3-channel mode to power a pair of high-performance speakers with 140 watts RMS each as well as 500 watts to the sub. The Class D design ensures the amp's high output won't put too much strain your vehicle's electrical system.

Compatible with almost any system

Speaker-level inputs and signal-sensing turn-on allow this amplifier to simply integrate into almost any system, even one using the factory radio. Separate high- and low-pass filters on the front and rear channels tune the sound to perfectly fit your speakers. The subwoofer channel features a low-pass filter, bass boost, and phase switch to tune the bass for your subwoofer. A wired remote lets you control the sub level from the front seat.

JBL Club 5055AHere's where the controls are located.

Product highlights:

  • 5-channel car amplifier
    • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
    • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
    • 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
  • front and rear channels:
    • Class AB amp technology
    • variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
  • subwoofer channel:
    • Class D amp technology
    • variable low-pass filter (32-320 Hz, 12 dB/octave)
    • variable bass boost (0-12 dB at 45 Hz)
    • phase switch (0, 180 degrees)
    • wired remote bass control module included
  • preamp and speaker-level inputs
    • bare wire to RCA adapters included for high-level inputs
  • wiring and hardware not included with amplifier
    • 4-gauge power and ground leads recommended
  • fuse rating: 30A x 3
  • dimensions: 14-1/8"W x 2"H x 7"D
  • warranty: 1 year

What's in the box:

  • 5-Channel amplifier
  • Six 30A fuses (3 installed/3 spares)
  • 4 Speaker to RCA adapters
  • RBC Remote level control w/ attached 16.5' cable (RJ-25 terminated)
  • Four 2-1/8" screws
  • Two 3/8" screws
  • Logo badge w/ adhesive backing
  • Owner's manual (Eng/Span/Fren/Others)
